The technology delivers the highest power levels in the world in the smallest size and might one day allow electric vehicles to be charged while driving at highway speeds.

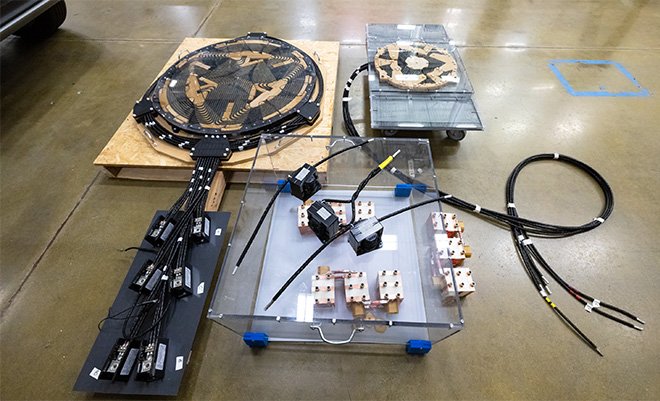

The license to HEVO includes ORNL’s one-of-a-kind polyphase electromagnetic coil, which has the highest surface power density known, 1.5 megawatts (1,500 kilowatts) per square meter — eight to ten times that of currently available technology.
This surface power density allows for higher power levels in a smaller, lighter coil, eliminating the issue of adding weight to electric cars, which reduces range.
The license also includes the Oak Ridge Converter from ORNL, which eliminates one of the power conversion steps required for wireless power transmission, resulting in more compact and less expensive fixed infrastructure.
ORNL technology provides very rapid hands-free charging as well as in-motion charging, allowing vehicles to be re-energized while driving at interstate speeds on specially prepared highways.
A motorist will now be able to wirelessly charge at all levels up to 300-kilowatts, power their house via a vehicle-to-grid link, and even charge while driving at highway speeds with grid-to-battery efficiency of 90-96.5 percent from a single device installed on the car.
All of this functionality is integrated into a vehicle-side device the size of a medium pizza box, as well as the ready-made capability to charge electric vehicles without the need for a human behind the wheel.
Under the terms of the license, HEVO will collaborate with ORNL to further develop the technology, including preparing it for commercial manufacture.
Reference- ORNL Technology website & PR, Science lert, clean Technica, HEVO website
